Solar Meters / Radiation Detection
Click image to enlarge

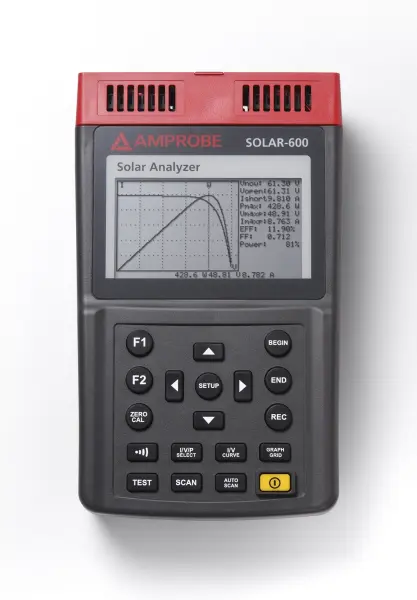

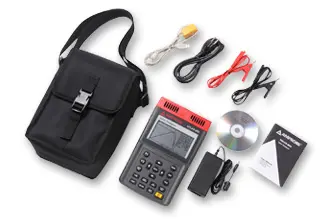

Pacific Test and Measurement offers a line of Solar Power Analyzer and Meters that are professional analyzing tools for testing, maintenance, troubleshooting and efficiency of solar panels. These analyzers are used in the installation of solar panels to determine the proper inverter size, optimum power output position of panels and identify broken or worn-out cells.
Other Solar power meters measure the solar power and transmission up to 2000 W/m2, 634 BTU/ft2xh. These meters have two modes: power and transmission. The power mode measures the power per unit area of the incident solar radiation. The transmission mode calculates the solar power transmission percentage of the material.
Features:
Other Solar power meters measure the solar power and transmission up to 2000 W/m2, 634 BTU/ft2xh. These meters have two modes: power and transmission. The power mode measures the power per unit area of the incident solar radiation. The transmission mode calculates the solar power transmission percentage of the material.
Features:
- I-V Curve test for solar cell
- Maximum Solar Power (Pmax) search by auto-scan (60V, 6A)
- Maximum Voltage (Vmaxp) at Pmax
- Maximum Current(Imaxp) at Pmax
- Voltage at open circuit(Vopen)
- Current at short circuit(Ishort)
- I-V curve with cursor
- Calculation of panel efficiency (%)
Show:
