AEMC Clamp-On Meter Model 514

Click image to enlarge

(Part #: 2117.70)

Mfg: AEMC®

Additional Model Number: 514

Price Each: $224.00

Quantity:

Resistance measurements to 4000Ω
Continuity with beeper below 40Ω
Frequency measurements from V and A
Diode test
1ms Peak function for fast capture of signals
Standard size, full function clamp-on meters
1000AAC or 1000AAC/DC current measurements
Ideal for inrush measurement
Hold function to “freeze” readings
750VAC or 1000VDC volt measurements
TRMS measurements (Models 512 and 514)
Push-button for easy ADC zeroing
Large, easy-to-read 4000-count display
42-segment analog bargraph
Supplied with test leads and soft carrying pouch

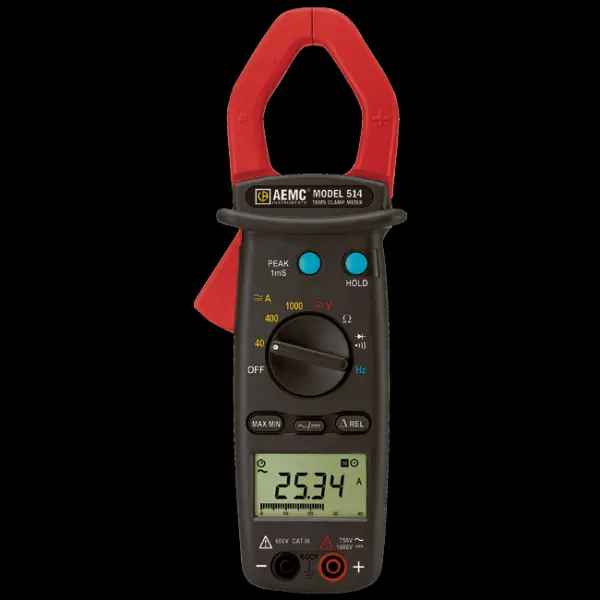

Clamp-On Meter Model 514 (AC/DC, TRMS, 1000AAC/DC, 750VAC/1000VDC, Hz, Ohms, Continuity)
The Clamp-On Meter Model 514 is a general-purpose professional clamp-on meter that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 514 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high-resolution 40A range.

Model 514 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function. The Model 514 also uses Hall sensor technology that provides both DC and AC current measurements to 1000A. The Model 514 is sized for a comfortable, one-handed operation. This model is average sensing and designed for traditional average responding electrical systems. The jaw opening for the Model 514 is 1.575" (40mm).

The AEMC Models 511, 512, and 514 are general-purpose professional clamp-on meters that measure up to the toughest standards. They are built into a rugged mechanical case and are designed using quality polycarbonate materials. These meters offer a complete set of measurement ranges and are in compliance with international safety and quality standards to ensure professional and reliable measuring tools. Models 511 and 512 are Auto-Ranging and provide the best measurement range and resolution for troubleshooting. They also have a high-resolution 40A range.

They measure AC Amps, AC Volts, as well as DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and have a Diode Test function. Model 514 also uses Hall Effect sensor technology that provides both DC and AC current measurements to 1000A.

Models 511, 512, and 514 are sized for comfortable, one-handed operation. The tapered and hooked jaw design facilitates maneuvering in crowded wiring and breaker panels, making it easy to select conductors. The jaw opening accommodates one 750MCM cable or two 350MCM cables. The large and easy-to-read 4000-count LCD features comprehensive user information symbols, such as a low battery, polarity, overload, and an analog bar graph for easy trend readings. All models are equipped with a Data Hold function that freezes the measurement for later viewing, Min/Max, and a fast 1ms Peak Hold function for the capture of signals.

The Model 511 is average sensing and designed for traditional average responding electrical systems. Models 512 and 514 are True RMS clamp-ons that provide RMS measurements for today's non-linear electrical environments.

All models include a pair of test leads (red/black with probe tips), a 9V battery, a soft carrying pouch, and a user manual - ready to go!

In The Box:

Meter
Test Leads (Red/Black with Probe Tips)
(1) 9V Battery
Soft Carrying Case
User Manual

Voltage Range	750V ACrms, 1000V DC Auto-Ranging
Resolution Max	0.1V
Current Range	1000Arms AC/DC
Resolution Max	0.01A
Accuracy V Typical	1.5% ± 5cts
Accuracy A Typical	1.9% ± 5cts
Continuity	<40Ω
Resistance	400Ω
Diode	Yes
Frequency	10kHz in V, 4kHz in A
MIN/MAX/PEAK-/PEAK+	Yes
∆REL	Yes
Digital Display	3¾ digits LCD display, 4000 count (max. reading 3999)
Analog Display	Fast 42-segment analog bar graph display
Power Source	1 x 9V, IEC 6LR61
Battery Life	40 hours
Auto Power Off	Auto-Off after 30 mins
Dimensions	9.53" x 2.6" x 1.42" (242 x 66 x 36mm)
Weight	14.1 oz. (400g) with battery
Jaw Opening	1.575" (40mm)
Operating Temperature	+32° to 104°F (0° to +40°C)
Storage Temperature	+14° to 140°F (-10° to 60°C)
Operating Humidity	80% up to 104°F (40°C)
Pollution Degree	2
Safety Compliance	EN/IEC 61010 to 300V CAT IV, 600V CAT III, 1000V CAT 11
HTS/SChedule B Number	903931000
ECCN Number	EAR99
Shipping Weight	6.00 LBS
Country of Origin	Taiwan
