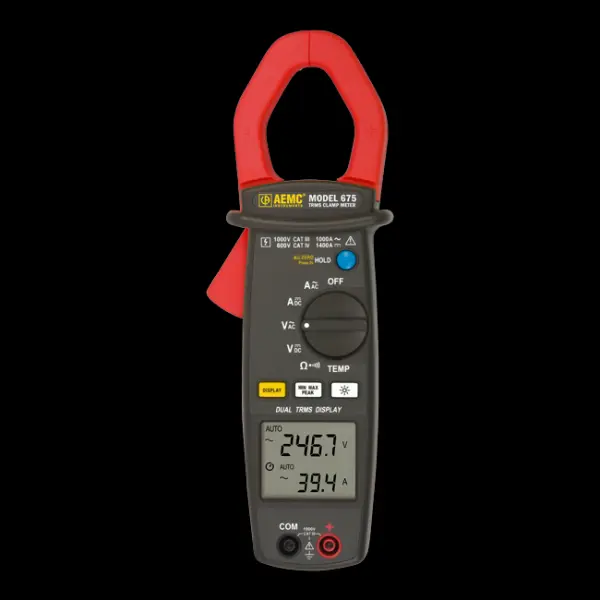

AEMC Clamp-On Meter Model 675
(Part# 2117.50)

Click image to enlarge

(Part #: 2117.50)

Mfg: AEMC®

Additional Model Number: 675

Price Each: $0.00

Quantity:

******Discontinued****** Please see replacement part # 2139.51

Dual Display
Standard Size, Full Function Clamp-On Meter
1000Aac/dc Current Measurements
1400Vdc Volt Measurements
TRMS Measurements
Resistance Measurement to 10,000Ω
Continuity with beeper below 35Ω
Frequency measurements from V and A inputs
1ms Peak function for fast capture of signals
Hold function to "freeze" readings
Designed to measure Amps and Volts at the same time
Push-button for easy Adc zeroing
Large easy-to-read 9999-count display

The AEMC Models 670 and 675 are general-purpose professional clamp-on meters that measure up to the toughest standards. These meters offer a complete set of measurement functions (AC Amps, DC Amps [675 only], AC Volts, DC Volts, Ohms, Continuity with beeper, Frequency from V or A Input, and Temperature) and are in compliance with international safety and quality standards to ensure professional and reliable measuring tools.

These meters are designed to measure and display amps and volts at the same time. They are also auto-ranging and provide the best measurement range and resolution for troubleshooting.

Models 670 and 675 are sized for comfortable, one-handed operation. The tapered and hooked jaw design facilitates maneuvering in crowded wiring and breaker panels, making it easy to select conductors. The jaw opening accommodates one 750kcmil cable or two 350kcmil cables. The large and easy-to-read 9999-count LCD features comprehensive user information symbols, such as low battery, polarity, and overload. Both models are equipped with a Data Hold function that freezes the measurement for later viewing and Min/Max, and the Peak function for the capture of signals.

The Model 670 and 675 are True RMS clamp-on meters that provide RMS measurements for today’s non-linear electrical environments.

In The Box:

Meter
Set of Test Leads (Red/Black with safety Needle Tips)
K-type Thermocouple
(1) 9V Battery
Soft Carrying Case
User Manual

Voltage Range	1000V ACrms, 1400V DC Auto-Ranging
Resolution Max	0.1V
Current Range	1000Arms Ac, 14000A DC
Resolution Max	0.01A
Accuracy V Typical	1.0% ± 5cts
Accuracy A Typical	1.5% ± 5cts
Continuity	<35Ω
Resistance	10kΩ
Diode	Yes
Frequency	10kHz in V, 1kHz in A
Temperature	Yes
MIN/MAX/PEAK-/PEAK+	Yes
Data Logging	No
Power Source	1 x 9V, IEC 6LR61
Battery Life	35 hours
Dimensions	10.12" x 3.15" x 1.69" (257 x 80 x 43mm)
Weight	15.5 oz. (440g) with battery
Jaw Opening	1.57" (40mm)
Operating Temperature	-14° to +122°F (-25° to +50°C)
Storage Temperature	-14° to 140°F (-25° to +60°C)
Operating Humidity	80% up to 122°F (50°C)
Pollution Degree	2
Ingress Protection	IP30
Safety Compliance	EN/IEC 61010 to 1000V CAT III
HTS/Schedule B Number	903031000
ECCN Number	EAR99
Shipping Weight	6.00 LBS
Country of Origin	Taiwan

Technical Resources

Commercial, Industrial, Residential, and HVAC troubleshooting
Power Panel, Junction Box, and Battery Bank Monitoring
AC or DC Motor Testing
Power Plant Troubleshooting
Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drivers and computers
