AEMC Megohmmeter Model 6536 ESD Floor Kit

Click image to enlarge

(Part #2155.57)

Mfg: AEMC®

Additional Model Number: 6536 ESD Floor Kit

Price Each: $1,700.00

Quantity:

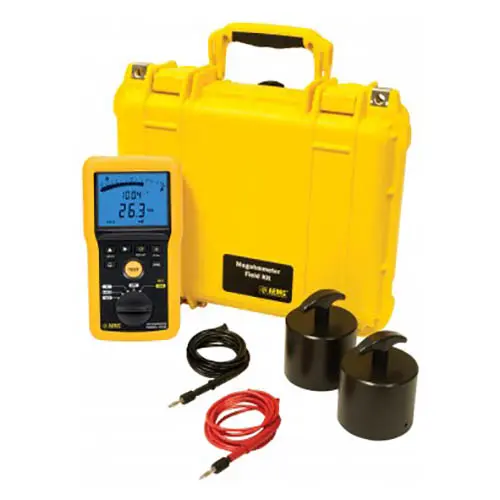

The Model 6536 is also available as a floor resistance testing kit (see § 2.2.5 in the user manual) for testing both point-to-ground and point-to-point electrostatic discharge (ESD). In addition to the instrument, the kit contains two 5 lb (2.3 kg) floor weights (also referred to as NFPA probes) that are in compliance with EOS/ESD 11.11 specifications. Each floor weight is coated with insulating paint and a conductive rubber base. The instrument, floor weights, and test leads are packaged in a rugged field case. The kit provides all the necessary elements for compliance with the ANSI/ESD STM97.2-2006 standard for testing ESD flooring

Features

True RMS AC Voltage and Current measurements
Variable 10 to 100V (1V increments) Insulation Test Voltages
20GΩ Max Insulation Resistance
Timed Test Mode up to 40 minutes for Insulation Resistance Test
Test Lock feature for hands free timed measurements up to 15 minutes
Continuity tests at 20mA or 200mA
Test lead resistance compensation for accurate low resistance measurements
True RMS AC/DC Voltmeter up to 700V
Ohmmeter to 1000kΩ

Technical Resources

Accessories

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.

AEMC Adapter – 4mm Non-insulated for Safety Leads
(Part# 1017.45)
Part #: 1017.45
$20.50

Quantity:

Banana Plug Adapter - 4mm Non-insulated for Safety Leads

AEMC Case – Field Case
Part #: 2118.98
$0.00

Quantity:

*********Discontinued******** Please see replacement part # 2155.77
Case – Field Case (Waterproof) for use with all Hand-held Megohmmeters

AEMC Case – Hands-free Carrying Case
Part #: 2118.99
$0.00

Quantity:

*********Discontinued************
Case – Hands-free Carrying Case for use with all Hand-held Megohmmeters

AEMC Continuity Pole
Part #2138.54
$125.00

Quantity:

Continuity Pole to use with Models C.A 6116/6116N/6117 and Megohmmeter series 6522-653

AEMC Lead - Set of 2, 5 ft. Color-coded (Red/Black) Silicone Leads
Part #2152.05
$0.00

Quantity:

******Disonctinued****** Please see replacement options 5000.94, 5000.99, 5100.00, 5000.30, or 5000.98
Lead - Set of 2, 5 ft (red/black) leads, probes & clips for Models 401, 403, 405, 407, 601, 603, 605 & 607

AEMC Probe - Set of 2, Color-coded (Red/Black) Grip Probes
Part #2152.26
$60.50

Quantity:

Set of 2, Color-coded (Red/Black) Grip Probes

AEMC Megohmmeter Test Probe
Part #: 2155.75
$265.00

Quantity:

Megohmmeter Test Probe {for use with Models 6522-6536, 6116N, 61117, 600V CAT IV}

AEMC Weights - Replacement Set of 2, 5 lbs.
Part #: 2155.76
$360.00

Quantity:

Weights - Replacement Set of 2, 5 lbs. each with conductive rubber pad (RoHS) for Model 6536 ESD Kit

AEMC Adapter - RS-232 to USB 2.0
Part#5000.60
$58.50

Quantity:

Adapter- RS-232 to USB 2.0 {Replacement for Models 3945-B, 1060, 5060, 5070, 6250 & 6255}

AEMC Clip - Set of 2, Color-coded (Red/Black) screw-on Alligator Clips
Part #2152.16
$26.00

Quantity:

Set of 2, color-coded (red/black) screw-on alligator clips rated 1000V CAT IV.

AEMC Megohmmeter Calibration Checker
5000.66
Part# 5000.66
$143.00

Quantity:

Megohmmeter Calibration Checker – Provides a quick and simple way to check the measurement accuracy of your megohmmeter. The unit provides two test resistances of 150k? and 100M?

Note: The 150kO terminal accepts test voltgaes up to 1000V. The 100MO terminal accepts voltages up to 2500V.
