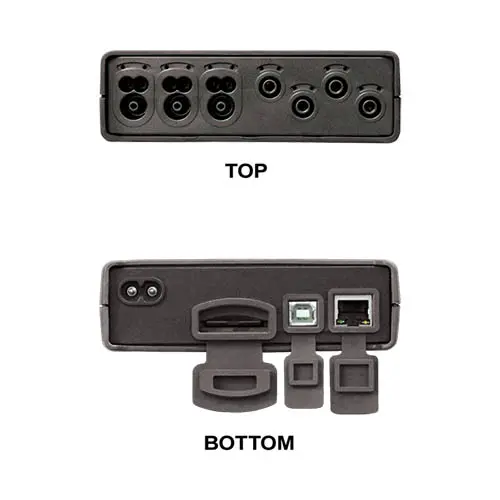

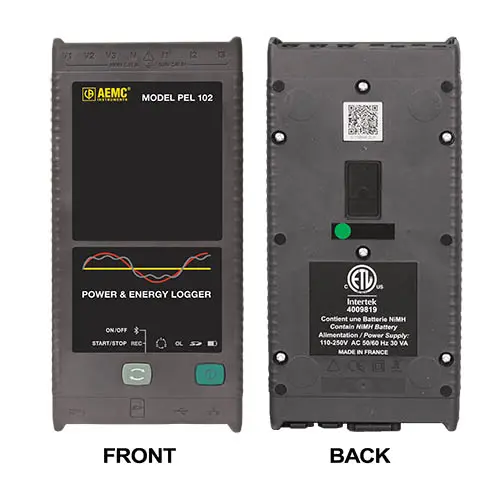

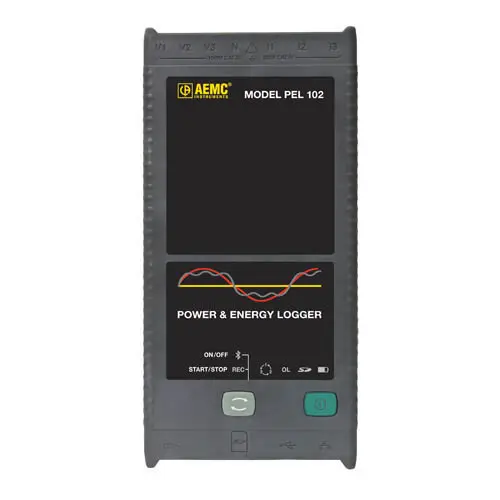

AEMC Power & Energy Logger Model PEL 102

Click image to enlarge

(Part#2137.61)

Mfg: AEMC®

Additional Model Number: PEL 102 - w/o sensors

Price Each: $1,740.00

Quantity:

The PEL 102 is a low cost, simple to use, one, two (split phase) and three phase (Y, Δ) power/energy data logger. This product is ideal for electricians, engineers and contractors doing work in the area of building and system monitoring and upgrades, as well as residential and overall energy audits. All vital energy data is easily measured, recorded, and analyzed. Reports can be generated with confidence with minimal configuration time and effort (Standard and Customizable Reports supplied).The instrument’s design enables it to be installed inside a load center panel (including the current sensors) allowing the door to close on most panels. The PEL 100 series offers all the essential functions for logging power/energy data from most electrical power networks in use today across the world (17 network set-ups provided). The PEL 100 series energy loggers measure and record three voltage inputs and current inputs, Watts, VARS, VA and Energy (kWh and kVA). Power Factor (PF), Displacement Power Factor (DPF), Crest Factor, Frequency and THD are calculated and recorded as well. Individual harmonic % information from 1 to the 50th harmonic are recorded at the operator’s choice. All variables are recorded and stored at a one second interval and on user selectable demand intervals from 1 to 60 minutes.

Features

Simple to use, single, dual-split and three phase power and energy logger
No LCD Display
Equipped with four powerful magnets for mounting the instrument on a metallic surface
1000V CAT III and 600V CAT IV
Measurement of RMS voltages and currents at 128 times per cycle and stored every second
Power Measurements: VA, W and var
Energy Measurements: VAh, Wh (source load) and varh (quadrant indication)
Updated features in DataView software for configuring real-time communication with a PC and report generation with pre-defined or user defined templates
USB, LAN, Ethernet and Bluetooth (Class 1 wireless communication, up to 300 ft. away)
Minimal programming required
Satisfies the recommendations of NEC Code 220.87

Technical Resources

Accessories

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.

AEMC AC/DC Current Probe Model SL261
Part #: 1201.51
$494.00

Quantity:

The Model SL261 is a portable 100A peak current probe with insulated BNC output cable that can accurately measure AC or DC current waveforms. The unit has proportional mV output for direct readings on oscilloscopes. Three position slide switch on handle selects ranges and ON/OFF.

AEMC Case – General Carrying Case
(Part# 2118.09)
Part #: 2118.09
$73.50

Quantity:

General Carrying Case

AEMC Bag – Large Multi-purpose
Part #: 2119.82
$166.00

Quantity:

Bag – Large Multi-purpose Canvas Bag (22 x 10.5 x 12" - used in Ground Kits)

AEMC Adapter (Part# 2119.94)
Part #: 2119.94
$27.00

Quantity:

Adapter - BNC (Female) to 4mm Banana (Male)
600V CAT III
(Replacement for Cat #2111.32)

AEMC Tool Bag - Compact (Part# 2133.72)
Part# 2133.72
$38.00

Quantity:

Compact Tool Bag
For Field Use

AEMC Cable – 10 ft USB Cable
Part #2136.80
$19.00

Quantity:

Replacement 10ft USB Cable for the DTR Model 8510

AEMC Lead – Replacement, Set of 4 Black Test Leads, 10 ft
Part #: 2137.76
$0.00

Quantity:

******Discontinued****** Please see replacement options 2140.44, 2137.76 or 2140.45
Lead – Replacement, Set of 4 Black Test Leads, 10 ft (3m), 4 Black Alligator Clips & 12 Color-coded ID Markers for PEL 102/103 Series

AEMC Adapter - Power Adapter
Part #: 2137.77
$0.00

Quantity:

******Discontinued******* Please see replacement part # 2137.83
Adapter – Power Adapter for use with Models PEL 102 & PEL 103

AEMC AC/DC Current Probe Model MR193-BK
Part #: 2140.28
$509.00

Quantity:

AC Current Probe Model MR193-BK for use with PowerPad and PEL Series

AEMC AC Current Probe Model MN93-BK
Part #2140.32
$252.00

Quantity:

AC Current Probe Model MN93-BK for use with Models L104, L564, PowerPad and PEL Series

AEMC AC Current Probe Model SR193-BK
Part #2140.33
$434.00

Quantity:

AC Current Probe Model SR193-BK for use with Models L104, L564, PowerPad and PEL Series

AEMC AmpFlex® Sensor 24" Model 193-24-BK
Part# 2140.34
$325.00

Quantity:

AmpFlex® 193-24-BK 24" for use with Models 8220, 8230, PowerPad & PEL Series

AEMC Digital FlexProbe® Model 4000D-24 w/6' Lead
Part# 2153.35
$420.00

Quantity:

AEMC Digital FlexProbe® Model 4000D-24 w/6' Lead (Cat# 2153.35) - An ideal addition to the electrician’s tool kit, the Digital FlexProbe® series can be used for TRMS AC current measurements and are rated at 600V CAT IV. They provide a welcomed solution when accessing electrical conductors is difficult and in tight places. The Model 4000D-24, available with a 24" sensor and a 6 ft. lead, has a measurement range starting at 20mA, and is designed for work in residential, commercial and light industrial applications. It can be used to check electrical distribution systems up to 400 Amps. Although they are high-performance instruments, the Digital FlexProbe® series remain very simple to use: two buttons are all it takes to start the instrument, deactivate the auto power-off, HOLD the value on the display or store the maximum value (MAX HOLD). The values are read directly on the built-in 4000-count display.

AEMC AC Current Probe Model MN193-BK
Part #2140.36
$339.00

Quantity:

AC Current Probe Model MN193-BK for use with Models L104, L564, PowerPad and PEL Series

AEMC Adapter – BNC Adapter
Part #2140.40
$132.50

Quantity:

Adapter - BNC Adapter for AC/DC Current Probe Model SL261 & Meters 8220, 8333, 8335 & 8336

AEMC Lead – One 10 ft
Part #2140.44
$31.75

Quantity:

Lead - 1, 10 ft (3m) black lead with black alligator clip for the PowerPad Model 8335

AEMC Replacement –ID Markers Set of 12
Part #2140.45
$36.00

Quantity:

Replacement – Set of 12, Color-coded Input ID Markers for Model 8333, 8335, 8336, 8435, & PEL 105

AEMC Cable – Replacement 5 ft
Part #2140.46
$14.00

Quantity:

Cable – Replacement 5 ft USB cable for Models 8333, 8335, 8336 & PEL 105

AEMC MiniFlex® Sensor, Model MA193-10-BK
Part# 2140.48
$278.00

Quantity:

MiniFlex® Sensor Model MA193-10-BK for use with PowerPad and PEL Series

AEMC AC/DC Current Probe Model J93-BK
Part #2140.49
$2,495.00

Quantity:

The AC/DC Current Probe Model J93-BK is a Hall Effect Current Probe designed to measure DC currents up to 5000A and AC currents up to 3500A, without opening the circuit. This probe is for use with Models 8333, 8336, 8435 & PEL Series.
