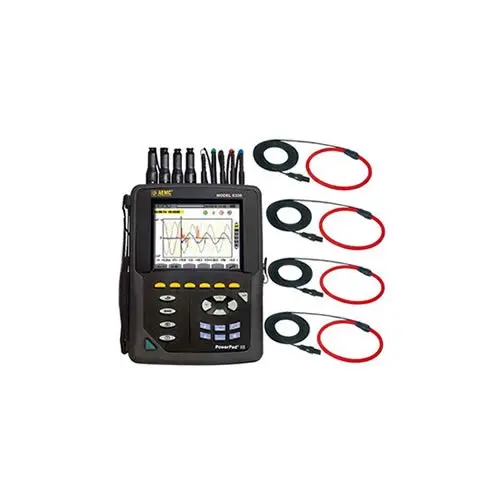

AEMC PowerPad® III Model 8336 w/4 193-24-BK AmpFlex® Sensors Replacement for Model 8335 Series

Click image to enlarge

(Part #2136.31)

Mfg: AEMC®

Additional Model Number: 8336 w/4 193-24-BK

Price Each: $6,690.00

Quantity:

The PowerPad® III Model 8336 is a three-phase power quality analyzer that is easy-to-use, compact and shock resistant. It enables technicians and engineers to measure and carry out diagnostics and power quality work on one-, two- or three- phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B and safety rated to 600V CAT Model 8336 has 2GB of memory available for storing trend data. Additional internal memory is used to let you store alarms, transients, and snapshot data. The user can store up to 50 screen snapshots, up to 210 captured transients that contain four cycles for each active input, and 10,000 alarm events from up to 40 different parameters. Trend data can also be recorded for days, weeks or even months. Inrush current can also be captured and stored. Four 24" AmpFlex flexible sensors are included.

Features

Measurement of RMS voltages and currents at 128 times per cycle and stored every second
Measurement of VA, W and var power values (total and per phase) stored every second
Measurement of VAh, Wh and varh energy values (total and per phase) per second with source/load indication
Calculation of the cos φ Displacement Power Factor (DPF) and the Power Factor (PF) stored every second
Measurement, calculation and display of the harmonics up to the 50th order for 50/60 Hz and 7th order for 400Hz
Electrical network quantities are stored on a removable SD-Card
DataView software for configuration, data retrieval and real-time viewing of measurements with a PC
with 4 ampflex probes

Technical Resources

Accessories

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.

AEMC AC/DC Current Probe Model SL261
Part #: 1201.51
$0.00

Quantity:

*****DISCONTINUED**** See replacement 2153.09 Model SL361
The Model SL261 is a portable 100A peak current probe with insulated BNC output cable that can accurately measure AC or DC current waveforms. The unit has proportional mV output for direct readings on oscilloscopes. Three position slide switch on handle selects ranges and ON/OFF.

AEMC Tool Bag - Compact (Part# 2133.72)
Part# 2133.72
$39.00

Quantity:

Compact Tool Bag
For Field Use

AEMC Bag - Extra Large Tool Bag (Part# 2133.73)
Part# 2133.73
$58.00

Quantity:

Extra Large Classic Tool Bag

AEMC Cable – 10 ft USB Cable
Part #2136.80
$19.00

Quantity:

Replacement 10ft USB Cable for the DTR Model 8510

AEMC Replacement, Soft Carrying Pouch
Part#2140.15
$45.00

Quantity:

Pouch – Replacement, Soft Carrying Pouch for Models 3945/3945-B, 8333, 8335 & 8336

AEMC-Battery Replacement 9.6V
Part#2140.19
$231.00

Quantity:

Battery – Replacement 9.6V NiMH Rechargeable for Models 3945/3945-B, 6550, 6555, 8333, 8335, 8336, 8435, PEL 105, OX series, & C.A 6116

AEMC AC/DC Current Probe Model MR193-BK
Part #: 2140.28
$509.00

Quantity:

AC Current Probe Model MR193-BK for use with PowerPad and PEL Series

AEMC AC Current Probe Model MN93-BK
Part #2140.32
$252.00

Quantity:

AC Current Probe Model MN93-BK for use with Models L104, L564, PowerPad and PEL Series

AEMC AC Current Probe Model SR193-BK
Part #2140.33
$434.00

Quantity:

AC Current Probe Model SR193-BK for use with Models L104, L564, PowerPad and PEL Series

AEMC AmpFlex® Sensor 24" Model 193-24-BK
Part# 2140.34
$325.00

Quantity:

AmpFlex® 193-24-BK 24" for use with Models 8220, 8230, PowerPad & PEL Series

AEMC AmpFlex® Sensor 36", Model 193-36-BK
Part# 2140.35
$375.00

Quantity:

AmpFlex® 193-36-BK 36" for use with Models 8220, 8230, PowerPad & PEL Series

AEMC AC Current Probe Model MN193-BK
Part #2140.36
$339.00

Quantity:

AC Current Probe Model MN193-BK for use with Models L104, L564, PowerPad and PEL Series

AEMC Adapter – BNC Adapter
Part #2140.40
$150.00

Quantity:

Adapter - BNC Adapter for AC/DC Current Probe Model SL261 & Meters 8220, 8333, 8335 & 8336

AEMC Lead –- Set of 5
Part #2140.43
$130.50

Quantity:

Lead –- Set of 5, Black 10 ft (3M) with 5 Black Alligator Clips, Replacement for Models 8333, 8335, & 8336 {Leads rated 600V CAT IV 10A, Clips rated 1000V CAT IV 15A, UL}

AEMC Replacement –ID Markers Set of 12
Part #2140.45
$36.00

Quantity:

Replacement – Set of 12, Color-coded Input ID Markers for Model 8333, 8335, 8336, 8435, & PEL 105

AEMC Cable – Replacement 5 ft
Part #2140.46
$0.00

Quantity:

*****DISCONTINUED***** See replacement option 2136.80
Cable – Replacement 5 ft USB cable for Models 8333, 8335, 8336 & PEL 105

AEMC MiniFlex® Sensor, Model MA193-10-BK
Part# 2140.48
$278.00

Quantity:

MiniFlex® Sensor Model MA193-10-BK for use with PowerPad and PEL Series

AEMC MiniFlex® Sensor Model MA193-14-BK
Part# 2140.50
$309.00

Quantity:

MiniFlex® Sensor Model MA193-14-BK for use with PowerPad and PEL Series

AEMC Adapter – Replacement Power Adapter 110V/230V with US Power Cord f
Part #: 5000.19
$209.00

Quantity:

Adapter – Replacement Power Adapter 110V/230V with US Power Cord for use with Models 8333, 8335, 8336, & C.A 6116

AEMC Probe – Set of 2
Color-coded (Red/Black)
5000.43
Part# 5000.43
$37.85

Quantity:

Probe - Set of 2, Color-coded (Red/Black) Magnetized Voltage Probes (Rated 600V CAT IV, 1000V CAT III)
for models 3945-B, 8220, 8230, 8333, 8335, 8336, 8435, 8436, and PEL series (or any lead that accepts a 4mm safety banana plug).
