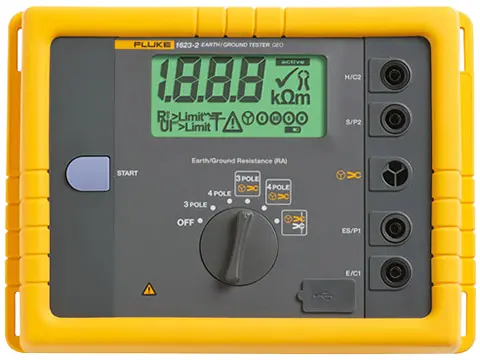

FLUKE-1623-2 KIT Earth Ground Tester Kit
Click image to enlarge
(FLUKE-1623-2 KIT)
Mfg:
Fluke®
Price Each:
$4,929.99
Quantity:
Add to Quote
Add to Cart
Description
Features
Documents
BASIC GEO EARTH GROUND TESTER, KIT -
The Fluke 1623-2 GEO Earth Ground Tester
are able to measure earth ground loop resistances using only clamps. With this test method, two clamps are placed around the earth ground rod and each are connected to the tester. No earth ground stakes are used at all. A known, fixed voltage is induced by one clamp and the current is measured using the second clamp. Then the tester automatically determines the resistance of the earth ground rod. This test method only works if a bonded earth ground system exists for the building or structure under test, but most are. If there is only one path to ground, like at many residential applications, the Stakeless method will not provide an acceptable value and the Fall of Potential test method must be used. With Stakeless testing, the earth ground rod does not need to be disconnected—leaving the bonded earth ground system intact during test. Gone are the days of spending time placing and connecting stakes for each earth ground rod on your system a major time saver. You can also perform earth ground tests in places you've not considered before: inside buildings, power pylons, or anywhere you don't have access to soil.
Features
3 & 4 pole fall of potential earth resistance loop testing
4 pole soil resistivity testing; Automatic frequency control (AFC)
Calculate earth ground impedance at 55Hz
Selective earth ground rod testing using 1 clamp; Stakeless earth ground rod testing using 2 clamps
IP56 rated for outdoor use
Internal memory storage up to 1500 records
14 to 122°F (-10 to 50°C) operating temp
Technical Resources
Datasheet: Fluke 1623-2 and 1625-2 GEO Earth Ground Testers
Manual: 1623-2 Earth/Ground Tester
