HYDRAULIC TEST PUMP, 10,000 PSI/690 BAR

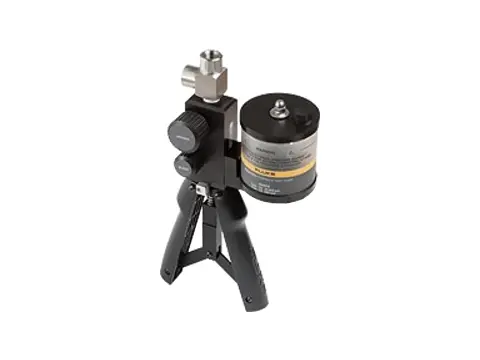

The Fluke 700HTP-1 is a hand operated hydraulic pressure pump designed to generate calibration pressures up to 10,000 psi/690 bar.
It is designed for use with the Fluke 700 series high pressure modules.
The Fluke 700HTP-1 hydraulic test pump is ideal for calibration when connected to a Fluke high pressure module via the reference port.
The 700HTP-2 uses distilled water or mineral-based hydraulic oil as a source for calibration of high pressure input devices such as pressure transmitters or pressure gauges.
The Fluke 700HTP-1 can also be used with the Fluke 717 pressure calibrators.
The Fluke 700HTP-1 hydraulic test pump has many features including a variable size stroke adjustment, which allows the user to vary the volume and pressure per stroke
An integral pressure adjustment vernier knob allows for fine pressure adjustment.
The Fluke 700HTP-1 has two 1/4 inch NPT pressure ports, one for reference (pressure module or gauge) and one for the unit under test.
The Fluke 700HPT-1 can be directly connected to a pressure module which consolidates two separate pieces into one when performing pressure calibration and testing.
The user must provide a hose with the appropriate end fittings (Fluke-700HTH-1) to apply pressure from the unit under test port to the calibration unit under test.
Features
- Max pressure: 10,000 psi / 690 bar
- Variable size stroke adjustment
- Integral pressure adjustment vernier knob
- Compatible with Fluke-700 series pressure modules
- Distilled water or mineral base hydraulic oil
- (2) 1/4" NPT pressure ports
- PUMP ONLY
